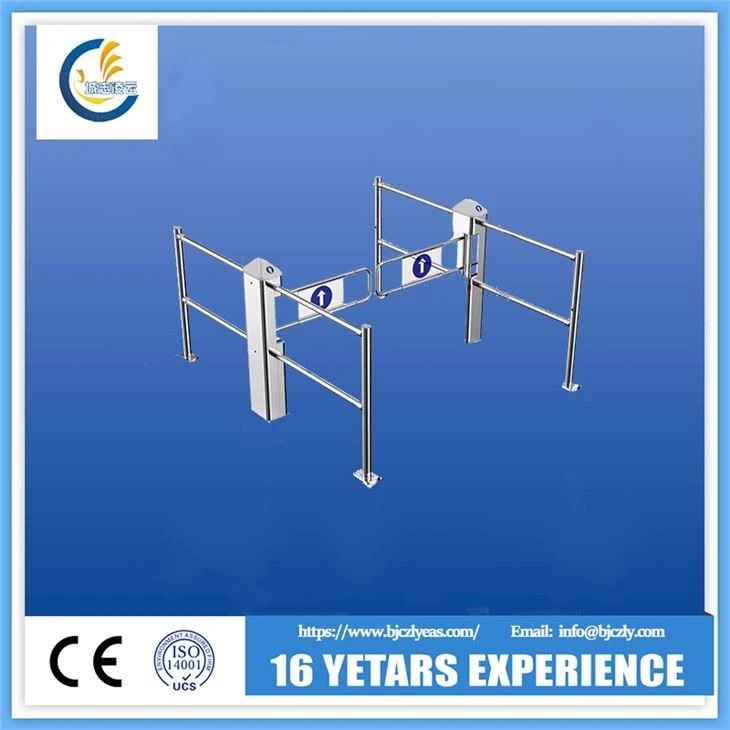

Stainless Hlau Loj Qiv Teeb Meem Kev Nyab Xeeb nrog nrog Siv Kho Kho

Stainless hlau pawg neeg tsim kev lag luam / chaw tsim tshuaj paus cov qhua tuaj noj mov tswj kev kaw lus

Taw qhia:



I. Cov Ntawv Thov Daus
Lub turnstile tuaj yeem pom kev txhaws thiab nkag kev tswj ntawm cov pej xeem kev hla. Nws cov tshuab tshuab muaj xws li cov khoom siv thaum muaj xwm ceev. Thaum lub sijhawm fais fab tuag, ob txhais caj npab ntawm ob tis yuav qhib cia li muaj peev xwm nkag tau. Thaum lub sijhawm xaiv hluav taws xob, cov caj npab yuav rov pib dua. Nrog ntau yam kev teeb tsa, nws haum rau txhua lub tsev thiab tuaj yeem daws txhua yam teeb meem tswj ntawm lub qhov rooj nkag thiab tawm.
II. Nta
1. SUS304 # 1.2mm stainless hlau rainproof rooj plaub NC punching, tho txawv laser, tus tshiab thiab zoo nkauj tsim;
2. Kev teeb tsa tshwj xeeb saum npoo, lav kev txhim kho yooj yim thiab yooj yim ntawm lub cev sib xyaw' s caj npab khoom tswj;
3. LINIX (hom micro-lub cev muaj zog zoo tshaj plaws hauv Suav teb) brushless DC lub cev muaj zog siv thiab nws saum npoo yog plated nrog dichromate;
4. Programmable turnstile tswj, hauv ib lossis ob qhov lus qhia (teeb tsa los ntawm tus neeg siv khoom);
5. Cov neeg taug kev yog tsau los ntawm kev siv cov txav txuas.
III. Taw qhia rau Brushless DC Tsav
Lub cev muaj zog tsis:
45 ZW N 24-30 / 60JB
Txo dua gearbox tooj
Rau cov khoom siv fais fab: 30 sawv rau 30W
Rated voltage: 12 sawv rau 12V
Rotor sib nqus cov khoom siv code: N sawv rau Nd-Fe-B
Khoom Siv Lub Npe Code: Z sawv rau DC, W sawv rau txhuam

1. Kev ntsuas tsis raug
1.1 Cov Qauv: 304 # / 2.0mm hauv cov thickness, puag ncig lub rooj hlau stainless
1.2 Sab nraud qhov ntev:
Txoj kab loj loj: 169mm
1.3 Nyhav: 40kg
1.4 Ntev tig ntawm caj npab: 500mm-900mm (lossis kho kom haum)
1.5 Kev thauj khoom siab kawg ntawm tig ceg: 30kg
1.6 Lub kaum sab xis tig ntawm sab caj npab: 180 °
1.7 Kev tig teb: Ob qho kev taw qhia
1.8 Cov khoom siv fais fab: AC220 ± 10% V / 50 ± 10% HZ
1.9 Tsav lub cev muaj zog: Brushed DC lub cev muaj zog (12V)
1.10 Cov kev tawm tswv yim: cov teeb liab sib tiv toj lossis 12V theem cim lossis teeb liab 12V mem tes nrog lub mem tes dav ≥ 100ms; Tsav tsheb tam sim no ≥ 10mA
1.11 Kev sib txuas lus interface: RS485 tus qauv; Kev sib txuas lus nrug ≤ 1200m
1.12 Yeem ceev: 40 tus neeg / feeb (qhib tsis tu ncua); 25-30 tus neeg / feeb (kaw tas li)
1.13 Caj npab qhib thiab kaw qhov luv: 1-2s
1.14 Lub sijhawm xav tau kom nkag mus rau lub xeev hla tom qab fais fab tuag rau: 3s
1.15 Lub sijhawm rau rov ua haujlwm tsis siv neeg thaum muaj teeb meem: 10s
1.16 Ib puag ncig kev ua haujlwm:
Nyob sab hauv tsev, sab nraum zoov
Kub: -10 ° C-50 ° C
RH: ≤ 90%, tsis muaj hws
2. Lub luag haujlwm tseem ceeb thiab nta

1) Nws qhov teeb meem tshuaj xyuas tus kheej thiab ceeb toom cov haujlwm ua rau cov neeg siv' s txij nkawm thiab siv yooj yim heev;
2) Cov khoom siv' s lub xeev khiav yuav raug tsim los ntawm cov vaj huam sib luag me me tso rau ntawm lub rooj tswj hwm;
3) Kev txhim kho tshuab muaj peev xwm tiv thaiv cov neeg ua haujlwm ua los ntawm clamped lossis raug mob. Raws li kev sib hloov caj npab raug txwv nyob rau hauv cov txheej txheem ntawm kev pib dua, lub cev muaj zog yuav nres ua haujlwm nyob rau lub sijhawm teev tseg. Lub caj npab yuav rov pib dua (txog thaum nws rov pib dua) tom qab lub sijhawm tsis ncua sijhawm thiab lub zog tseem me me (≤ 2Kg);
4) Kev nkag mus rau hauv lub xauv: kev sib hloov caj npab yog muab tub sab ua ntej qhib lub teeb liab txais.
5) Kev sib hloov caj npab synchronization (rau ob sab caj npab);
6) Tsis siv neeg pib dua: Yog tias ib tug neeg tsis dhau lub sijhawm teev tom qab qhib lub turnstile, lub kaw lus yuav tshem tawm cov kev tso cai ntawm qhov kev nkag mus cia;
7) Turnstile tuaj yeem teeb tsa raws li qhib lossis kaw tas li kom ua tau raws li qhov xav tau ntawm cov chaw sib txawv;
8) Induction lossis lub sijhawm qeeb yuav rov pib kho dua nyob rau hauv 5 vib nas this (khom tawm) tom qab qhib; Thiab
9) Tig caj npab qhib cia li thaum muaj hluav taws xob tsis ua haujlwm thaum lawv kaw lub sijhawm hluav taws xob, ua kom tau raws li qhov yuav tsum tau muaj kev tiv thaiv hluav taws.
