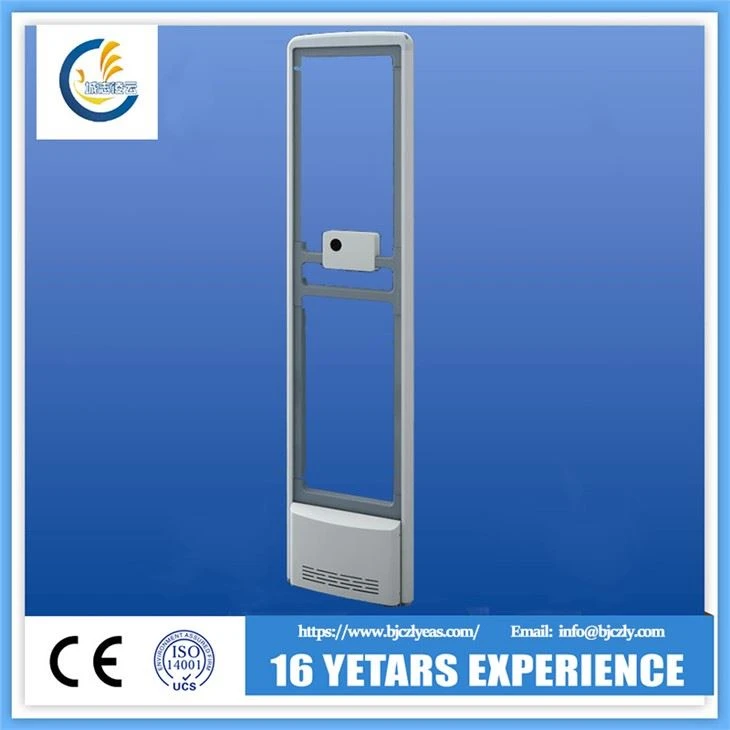

Supermarket Security Rooj vag

Kev piav qhia

● Tshiab Saib --- Lub teb chaws Yelemees imported acrylic khoom, crystal ntshiab tsos, zoo nkauj, hluav taws-resistant, kub kub, tsis deformation.

● Cov thev naus laus zis siab tshaj plaws - tsov txaij series siv lub ntiaj teb ua cov teeb liab tau txais thiab ua cov thev naus laus zis, siv cov cuab yeej ua haujlwm siab DSP rau cov teeb liab tsom thiab kuaj pom, built-in super anti-jamming algorithm, yoog rau ib puag ncig, yuav luag tsis muaj qhov tsis zoo.

● Kev teeb tsa yooj yim---Tus maub los ua rau hauv lub cuab yeej. Ib qho yooj yim rau nruab, elegant tsos, ntsaws thiab ua si, tsis muaj lwm yam xws li.

● Kev saib xyuas tom qab muag - Txhua lub rooj tsav xwm muaj tus cim thoob ntiaj teb tshwj xeeb. Tus ID yog uploaded rau huab nyob rau hauv cov nroj tsuag, thiab tej zaum yuav siv nyob rau hauv lub khiav hauj lwm lub xeev ntawm lub chaw taws teeb saib xyuas ntaus ntawv. Lub motherboard yog ib tug cais encrypted, cov neeg tsis tau tso cai yuav tsis tau tso cai debugging.

Specification

Leopard-XLA Technical Parameters:
Khoom siv	Aluminium alloy plus yas
Antenna Loj:	1580 * 390 * 50mm
Hom haujlwm	Ua haujlwm yam tsis muaj tus tswj
Ntau zaus:	58kHz ua
Kav hlau txais xov hnyav:	Master: 12KG Vice: 10.5KG
Tswv yim	24V AC ntxiv rau 10 feem pua, 50/60Hz
Transmit pulse duration:	1.8ms ua
Lub zog fuse:	0.8A ntxiv rau 1A

Cov khoom sivthiab Kev Tiv Thaiv Range

Accessories:	Leopard-XLA tiv thaiv ntau yam rau ib sab	Leopard-XLA tiv thaiv ntau yam rau ib channel
DR tag	800-900 hli	1600-1800 hli
25 ferrite me mem hluav tag	950-1050 hli	1900-2100 hli
33 ferrite mid mem hluav tag	1100-1200 hli	2200-2400 hli
39 ferrite mid mem hluav tag	1200-1300 hli	2400mm -2600 hli
45 ferrite loj mem hluav tag	1400mm -1500 hli	2800mm -3000 hli

Network version ntawm cov lus qhia cov neeg caij tsheb

I) Product Profile

Lub hauv paus ntsiab lus ntawm cov neeg caij tsheb khiav yog tias cov neeg caij tsheb khiav suav suav lub davhlau ya nyob twg thiab lub tshuab hluav taws xob infrared sib koom ua ke. Cov neeg caij npav suav suav lub davhlau ya nyob twg tuaj yeem tau txais cov teeb liab infrared los ntawm infrared transmitter. Lub teeb liab infrared raug thaiv thaum cov neeg taug kev hla ntawm qhov nkag thiab tawm, thiab cov neeg caij tsheb khiav suav suav lub davhlau ya nyob twg tau txheeb xyuas thiab tsim cov suav. Network txee cov neeg caij tsheb khiav cov ntaub ntawv cia li upload huab, parameter teeb tsa thiab cov neeg caij tsheb khiav cov ntaub ntawv tshawb xyuas los ntawm kev ua haujlwm hauv smartphone.

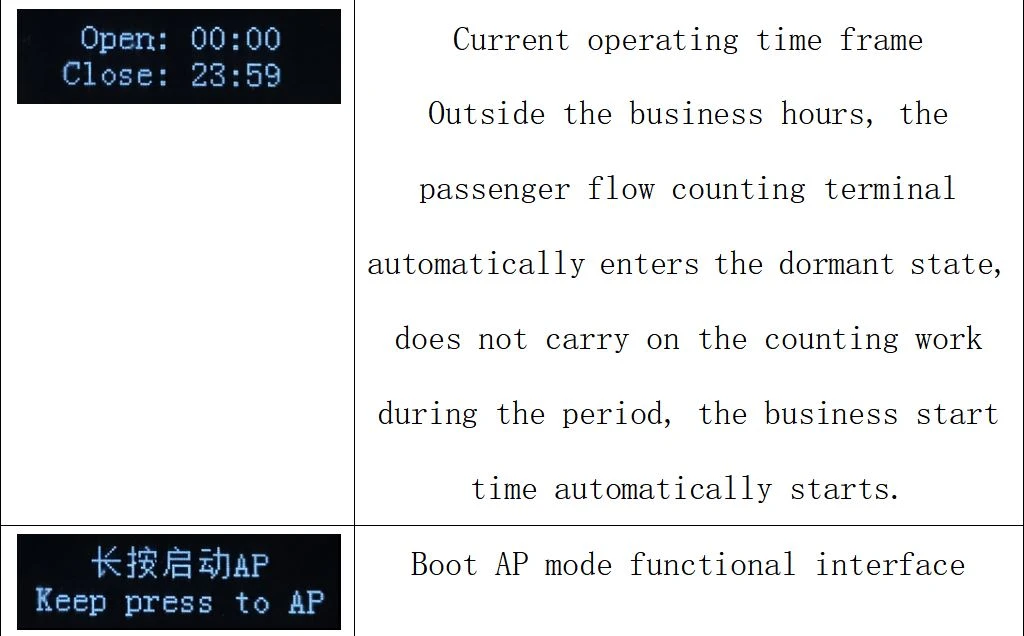

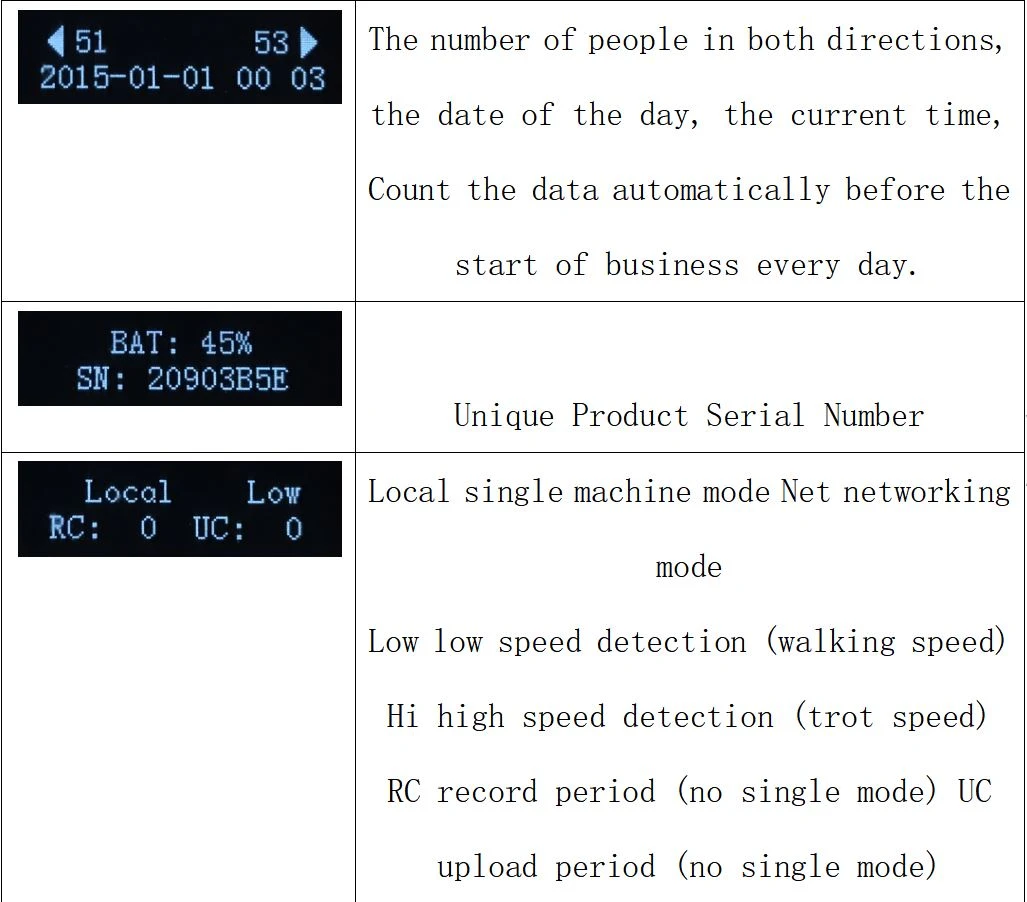

II) Network Counter Screen Interface

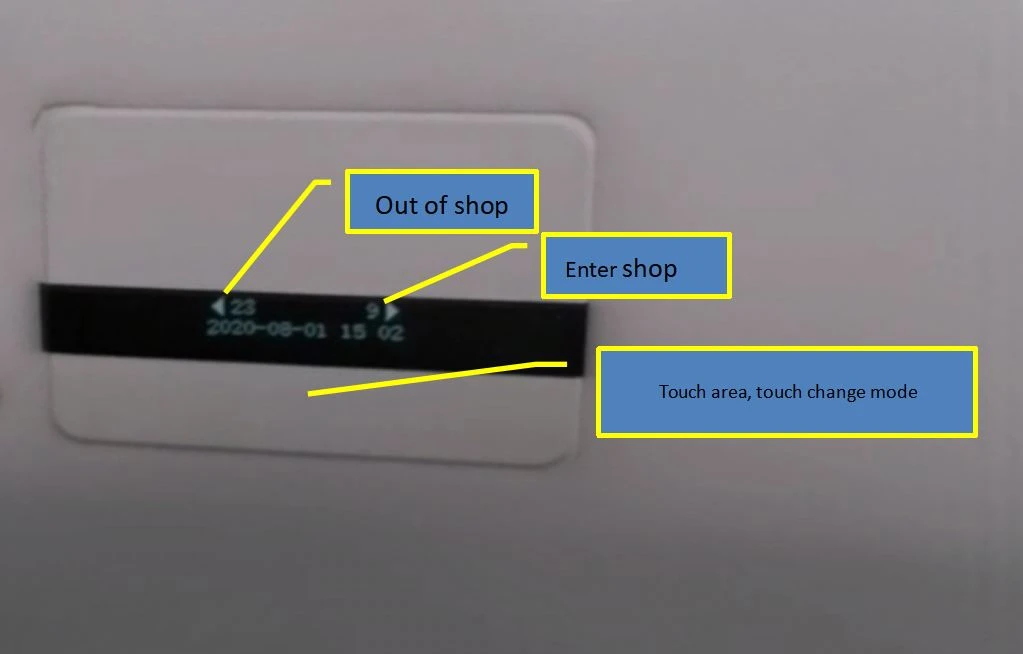

Lub vijtsam zaub tsuas tuaj yeem sawv los ntawm kev kov lub vijtsam ncaj qha hauv qab no. Thaum lub vijtsam zaub tau teeb, cov ntsiab lus ntawm lub vijtsam tuaj yeem hloov pauv thaum txhua tus kov tuaj yeem tso tawm:

Thaum tsis muaj kev ua haujlwm kov hauv 10 vib nas this, cov zaub yuav cia li tua.

III) Network Counter Network Configuration

Network hom kev ua haujlwm yuav tsum xyuas kom meej tias qhov chaw teeb tsa muaj qhov zoo WIFI teeb liab, koj yuav tsum npaj lub xov tooj ntse nrog WIFI ua haujlwm kom ua tiav cov haujlwm teeb tsa.

Hloov cov ntsiab lus ntawm cov neeg caij tsheb khiav suav suav lub davhlau ya nyob twg tso saib lub vijtsam mus rau "ntev xovxwm pib AP" interface, nias ntev 5 vib nas this, kom txog rau thaum lub vijtsam qhia "khiav" thiab qhia sijhawm suav rov qab, tig lub xov tooj ntawm lub wireless LAN, tshawb xyuas WIFI network , Koj tuaj yeem nrhiav tau lub network kub hu ua iDTK ", koom nrog lub network thiab xyuas kom lub network txuas tau zoo.

Thaum lub davhlau ya nyob twg suav cov neeg caij tsheb pib qhov kev pabcuam AP (wifi hot spot), yog tias tsis muaj lub xov tooj ntawm tes txuas nrog iDTK network li ntawm 30 vib nas this, AP kev pabcuam raug kaw. Yog li ntawd, koj yuav tsum tau them sai sai rau cov neeg nrog caij suav davhlau ya nyob twg screen countdown, txhua tus kov yuav suav rov qab.

Txuas Wifi

Yog tias muaj lwm yam khoom siv wireless nyob ib ncig ntawm lub davhlau ya nyob twg tam sim no siv lossis WIFI channel cuam tshuam, tej zaum yuav muaj qhov tsis ua haujlwm ntxiv rau lub network, sim ntxiv ntau zaus kom txog thaum kev sib txuas hauv network ua tiav.

Qhib qhov browser, nkag mus: 192.168.8.1 ntawm qhov browser chaw nyob, nias nkag mus (GO), nkag mus rau cov neeg caij tsheb khiav suav cov chaw nres tsheb nplooj ntawv, tus password thawj zaug yog 1234, koj yuav tsum nkag mus rau tus password ua ntej xaiv qhov chaw.

Thaum siv hom kev sib txuas, cov neeg caij tsheb khiav suav cov ntaub ntawv davhlau ya nyob twg tau cia li xa mus rau huab los ntawm lub sijhawm ruaj khov ntawm WIFI network.

Thaum koj nyob ntawm nplooj ntawv nkag rau 5 vib nas this (tus neeg caij tsheb khiav suav lub davhlau ya nyob twg scans qhov chaw nyob ib puag ncig wifi kub), nkag mus rau tus password, nyem lub network teeb tsa, thiab nyem lub pob SSID los tso saib cov ntaub ntawv nyob ib puag ncig WIFI network uas cov neeg caij tsheb suav suav. terminal tuaj yeem tshawb nrhiav.

Tom qab cov tsis tau txais kev cawmdim tiav, cov neeg nrog caij suav davhlau ya nyob twg pib qhov kev sib txuas network thiab lub server,

Nws yuav siv li 30 vib nas this ntxiv rau lub network tshiab.

Tom qab kev sib txuas hauv lub network, kev sib txuas ntawm cov neeg rau zaub mov yog qhov qub, qhov tsis xav tau rau cov neeg caij tsheb khiav suav suav lub davhlau ya nyob twg los khiav tau raug rub tawm los ntawm cov neeg rau zaub mov, thiab tom qab lub sijhawm calibration, "configuration tiav".

IV) Kev siv lub installation

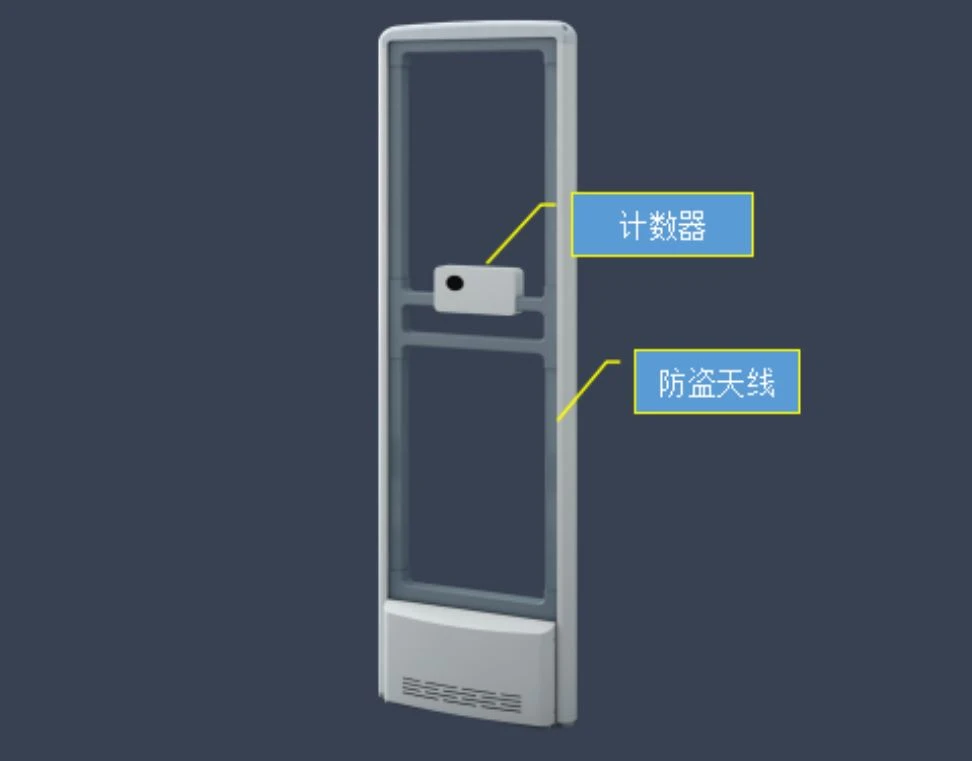

Kev txhim kho yuav tsum tau ua kom muaj kev sib koom siab ntawm cov kav hlau txais xov tiv thaiv tub sab, cov neeg caij tsheb khiav thiab cov infrared emitters

V) khaws kev tswj hwm thiab sau npe tus account

Tom qab sau npe, siv "tus neeg caij tsheb platform" URL http://rep.ecounter.net/, thiab tom qab ntawd siv koj tus lej sau npe nkag, nkag mus tuaj yeem tswj hwm khw.

Nco tseg: cov ntaub ntawv nkag hauv qab no yog piv txwv, luam theej duab QR code hauv qab no
