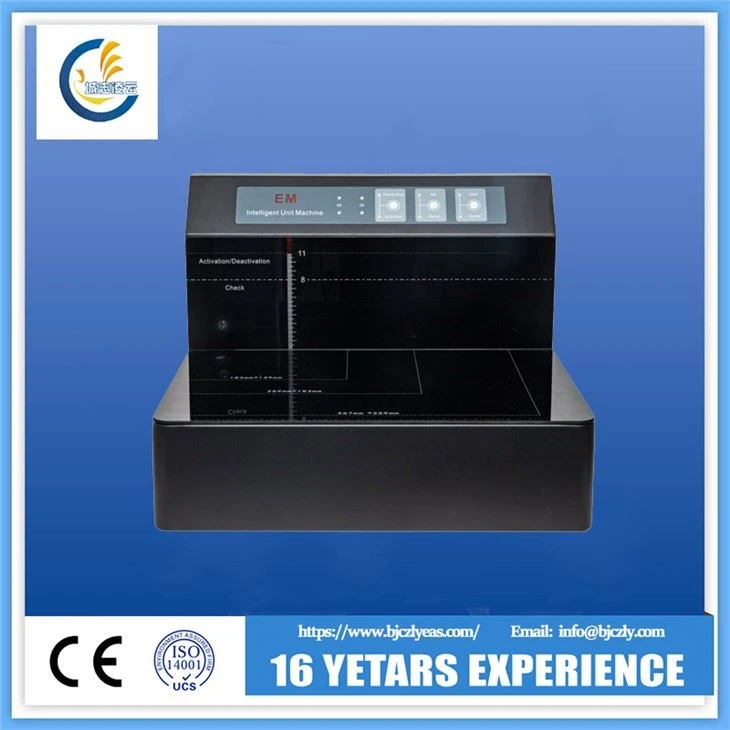

EM Activation Deactivation thiab Check Integrated Tshuab

Yam ntxwv

● Kev ua haujlwm yooj yim --Qhov kev xaiv tsis siv neeg thiab phau ntawv hom tuaj yeem ua tau raws li txhua yam kev ua haujlwm.

● Kev ua tau zoo heev--Qhov siab ua haujlwm tau zoo thiab ua kom tsis muaj zog yog siab li 9 cm. Ib txoj haujlwm tuaj yeem qhib / deactivate ntau phau ntawv tib lub sijhawm.

● Zoo meej muaj nuj nqi--Nws tuaj yeem qhib, kaw thiab ntes cov kab hlau nplaum. Cov cuab yeej tuaj yeem kuaj xyuas seb puas muaj cov kab hlau nplaum sib nqus hauv phau ntawv, seb cov kab hlau nplaum puas tuaj yeem ua tsis tau lossis seb cov hlau nplaum ruaj khov thiab cov kab hlau nplaum puas muaj hlau nplaum.

● Reliable operation—In terms of the effective operation space or execution speed, the device can ensure reliable activation, deactivation and magnetic detection.

● Kev sib raug zoo zoo--Lub cuab yeej tuaj yeem ua haujlwm ntawm txhua hom hlau nplaum tam sim no, suav nrog cov tuam txhab sib txawv (xws li 3M, Checkpoint Meto, Tagit, thiab lwm yam), cov khoom siv sib txawv amorphous (xws li kev sib haum xeeb yoj thiab Barkhausen effect) thiab cov neeg los ntawm ntau lub teb chaws (xws li Tuam Tshoj, Lub Tebchaws Yelemees, Czech koom pheej, Ixayees, Russia, thiab lwm yam).

● Kev siv hluav taws xob tsawg--Lub cuab yeej tsuas yog ua haujlwm thaum cov ntawv dhau los lossis thaum tau txais cov lus los ntawm lub tshuab luam ntawv barcode lossis lub computer. Hauv hom standby, lub zog ntawm lub cuab yeej tsuas yog 100mV. Nws tsis tsuas yog txuag lub zog, tab sis kuj txo cov pa phem electromagnetic.

Technical specifications

Control unit thiab interfaces

1) Fais fab interface: siv los txuas 220 V lossis 110 V AC fais fab mov.

2) Lub ntsiab hloov khawm: siv los qhib thiab tawm lub cuab yeej.

3) RS-232 serial chaw nres nkoj: reserved interface.

4) Pab hloov pauv: qhib thiab tawm lub cuab yeej thaum kos rau hauv kev teeb tsa

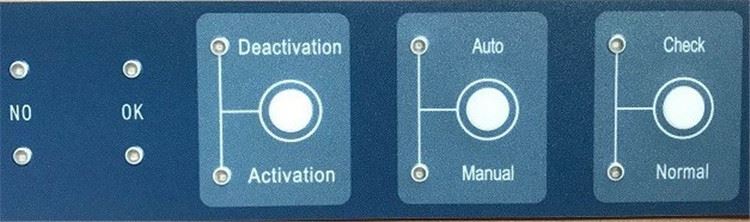

Console

1. Kos / Li qub hom hloov dua siab tshiab

1) Tshawb xyuas: cov cuab yeej no tsuas yog kuaj xyuas seb puas muaj cov kab hlau nplaum sib nqus hauv qhov chaw zoo.

2) Li qub: cov cuab yeej no yog siv rau kev ua kom thiab deactivation.

2. Nws pib / phau ntawv hom hloov dua siab tshiab

1) Thaum lub check / normal mode hloov - dhau hloov mus rau qhov qub, koj tuaj yeem xaiv hom pib / phau ntawv.

2) Nws pib: lub cuab yeej cia li qhib lossis deactivates raws li kev kuaj pom cov kab nrib pleb. Thaum kuaj pom lub xeev qhib, nws yog deactivated; Thaum kuaj pom lub magnetic stripe deactivation state, nws tau qhib.

3) Phau Ntawv Qhia: raws li qhov teeb tsa ntawm kev ua kom / deactivation hloov pauv, lub cuab yeej tuaj yeem ua tiav nkaus xwb lossis tsuas yog deactivation.

3. Ua kom / deactivation hloov dua siab tshiab

1) Thaum xaiv hom Manual, koj yuav tsum xaiv qhov ua kom ua haujlwm lossis tsis ua haujlwm.

2) Activation: tsuas yog ua kom muaj zog xwb

3) Deactivation: tsuas yog deactivation

4. Qhov taw qhia ua tiav kev ua tiav

1) Thaum qhov ntsuas ntsuab no qhib, nws txhais tau tias:

● Txheeb xyuas hom: tsis muaj kab hlau nplaum nyob hauv qhov chaw muaj, lossis cov kab hlau nplaum tsis tau qhib.

● Hom li qub: deactivation ua tiav

5. Qhov taw qhia ua kom tiav

1) Thaum qhov ntsuas ntsuab no qhib, nws txhais tau tias:

● Kos hom: cov hlau nplaum sib nqus nyob rau hauv lub xeev ua kom muaj zog hauv qhov chaw zoo.

● Hom li qub: ua kom tiav

6. Deactivation tsis ua hauj lwm qhia

1) Magnetic stripe yog ruaj khov. Nws yuav tsum tau hloov nrog ib tug deactivatable magnetic stripe, txwv tsis pub, nws yuav ua rau lub tswb thaum dhau los ntawm kev kuaj xyuas system.

2) Cov khoom siv rau deactivation (semihard magnetic material) ntawm no hlau nplaum yog puas. Qhov no magnetic stripe yuav tsum tau hloov.

3) Magnetic stripe tsis nyob rau hauv qhov tseeb deactivation txoj hauj lwm. Muab phau ntawv tso thiab sim dua.

4) Cov cuab yeej tsis ua haujlwm.

7. Qhov taw qhia ua kom tsis ua haujlwm

1) Thaum lub teeb liab LED no tshwm sim, nws txhais tau tias ua kom tsis ua haujlwm. Qhov ua rau tsis ua haujlwm yuav yog ib qho ntawm cov hauv qab no:

● Cov kab hlau nplaum sib nqus tsis nyob hauv txoj haujlwm kom raug. Muab phau ntawv tso thiab sim dua.

● Cov kab hlau nplaum puas lawm. Qhov no magnetic stripe yuav tsum tau hloov.

● Cov khoom siv rau kev ua kom muaj zog ntawm cov hlau nplaum no (cov khoom siv sib nqus nyuaj) puas lawm. Qhov no magnetic stripe yuav tsum tau hloov.

● Cov cuab yeej tsis ua haujlwm.

8. Infrared sensor: qhov ua kom, deactivation thiab magnetic check yog tshwm sim thaum lub teeb infrared ntawm lub infrared sensors raug txiav tawm.

Hloov Fuse

Lub fuse yog muab tso rau hauv lub qhov hluav taws xob lub qhov hluav taws xob ntawm tus tswv tswj hwm thiab suav nrog lub fuse seem.

1. Tua lub hwj chim ntawm tus tswv tsev tswj.

2. Ntxig ib lub tiaj tus ntsia hlau rau hauv lub qhov ntawm lub fuse tuav thiab rub tawm tus tuav tawm sab nraud.

3. Replace the current fuse with a spare fuse or a fuse with the same specification (250 VAC @ 4 A,Φ5 x 20 mm), and then plug the card holder back into the power socket.

Kev teeb tsa

Muab lub console ncaj qha rau ntawm qhov chaw thiab muaj peev xwm dais nws qhov hnyav, lossis kos rau hauv lub dav hlau.

Kev ua haujlwm yooj yim

Sib nqus check

1. Xaiv hom tshuaj xyuas.

2. Raws li seem ntawm "kev ua haujlwm tshwj xeeb (nplooj 10)", muab cov phau ntawv los kuaj xyuas ntawm lub console kom raug.

Ib tug ntawm plaub lub teeb yog nyob rau.

Lus Ceeb Toom thiab Lus Qhia

Rau qhov raug, nws raug nquahu kom muab ib phau ntawv nkaus xwb rau ib lub sijhawm.

Ua kom tsis muaj zog thiab tsis ua haujlwm

1. Xaiv hom li qub.

2. Xaiv hom pib; los yog, xaiv Manual hom, thiab tom qab ntawd xaiv Qhib lossis Deactivation.

3. Muab cov phau ntawv kom raug qhib / deactivated ntawm lub console raws li tau piav qhia hauv ntu< operation="" specification="" (page="" 10)="">Ib tug ntawm plaub lub teeb yog nyob rau.

Lus Ceeb Toom thiab Lus Qhia

Yog tias koj xav ua kom tau txais kev ua kom / deactivation ntawm ntau phau ntawv tib lub sijhawm, tag nrho cov hlau nplaum hauv lawv yuav tsum deactivatable; txwv tsis pub, qee qhov sib nqus strips yuav tsis qhib lossis kaw kom raug.
